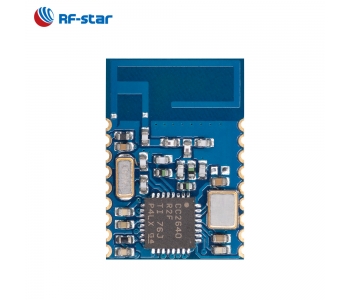

RF-BM-4044B2

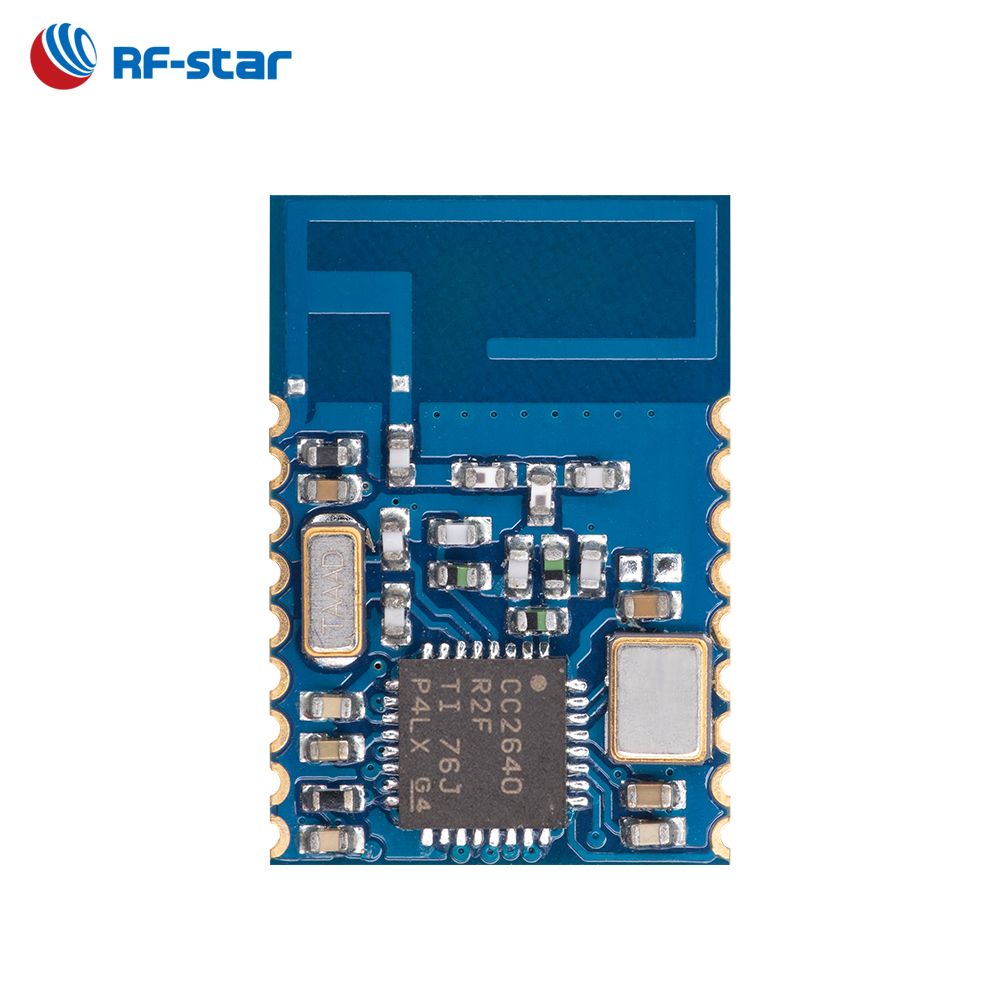

RF-BM-4044B2 module is designed based on CC2640R2FRSM Bluetooth Smart BT 5.0 System-on-Chip, fully supports the single mode Bluetooth Low Energy operation. The module contains a 32-bit ARM CortexTM-M3 processor, with the working frequency at 48.0 MHz which is the same as the main processor.

Chip： CC2640R2F

Protocols： BT 5.0,UART Protocol

Core： Powerful ARM? Cortex?-M3

Key Features： LE 1M PHY, LE 2M PHY, LE Coded PHY (long range)

TX Power： +2 dBm

Distance： 40m ~300 m

Small size integrated ARM MCU UART Multi-protocol CC2640R2F chip BT 5.0 Bluetooth module SPI

RF-BM-4044B2 module is designed based on CC2640R2FRSM Bluetooth Smart BT 5.0 System-on-Chip and fully supports the single-mode Bluetooth Low Energy operation. The CC2640R2F module contains a 32-bit ARM Cortex^TM-M3 processor, with the working frequency at 48.0 MHz which is the same as the main processor. The module has rich peripherals function libraries, and a unique ultra-low power sensor controller, which is fit for connecting the external sensors in the sleep mode and/or acquiring analog and digital data independently. RF-BM-4044B2 is pin-compatible with the RF-BM-4044B3 in SMT package.

Parameters of RF-BM-4044B2

Chipset	CC2640R2FRSM
Supply Power Voltage	1.8 V ~ 3.8 V, recommended to 3.3 V
Frequency	2402 MHz ~ 2480 MHz
Transmit Power	-21.0 dBm ~ +2.0 dBm (typical: 0 dBm)
Receiving Sensitivity	-97 dBm
GPIO	10
Crystal	24 MHz, 32.768 kHz
RAM	20 KB
Flash	128 KB
Package	SMT Packaging
Frequency Error	±20 kHz

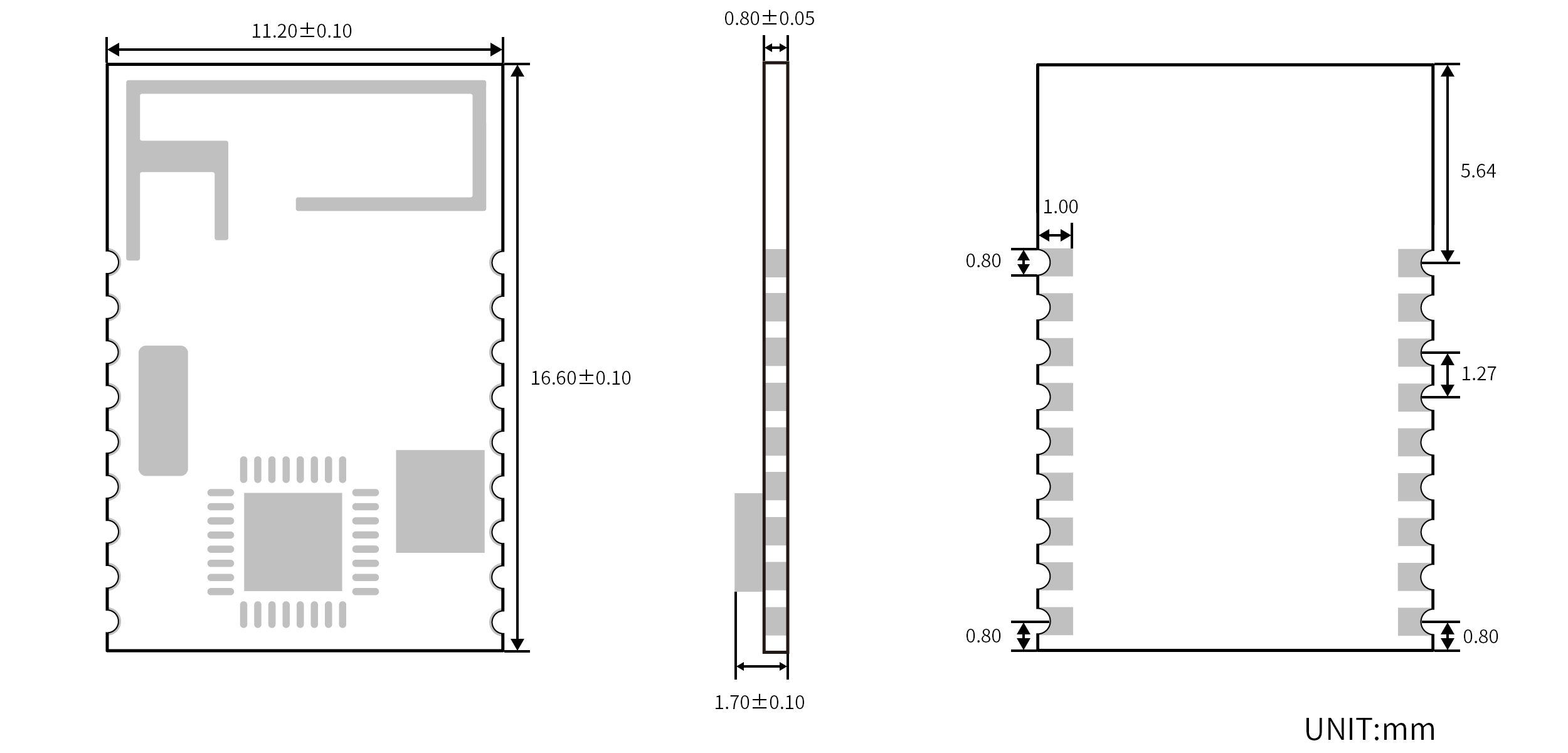

Dimension	16.6 mm x 11.2 mm x (1.7 ± 0.1) mm
Type of Antenna	PCB antenna
Operating Temperature	-40 ℃～ +85 ℃
Storage Temperature	-40 ℃～ +125 ℃

Small size PCB FCC CE CC2640R2F BT5/ble4.2 module

BLE Application

Small size PCB FCC CE CC2640R2F BT5/ble4.2 module

Recommended Footprint

Pin Attributes

The Pin Functions of RF-BM-4044B2

Pin	Name	Chip Pin	Pin Type	Description
1	GND	GND	Power	GND
2	VDDZ	VCC	Power	Power supply 1.8 V ~ 3.8 V, Recommend 3.3 V
3	TMSC	TMSC	JTAG	JTAG: TMSC
4	TCKC	TCKC	JTAG	JTAG: TCKC
5	RES_N	REST	REST	Reset, active low. No need for external RC circuit.
6	P06	P06	I/O
7	P09	P09	I/O
8	GND	GND	GND	Ground
9	GND	GND	GND	Ground
10	P08	P0.8	I/O
11	P07	P0.7	I/O
12	P05	P0.5	I/O
13	P04	P0.4	I/O
14	P03 / BRTS	P0.3	I/O
15	P02 / BCTS	P0.2	I/O
16	P01 / TX	P0.1	I/O
17	P00 / RX	P0.0	I/O
18	NC	-	-
