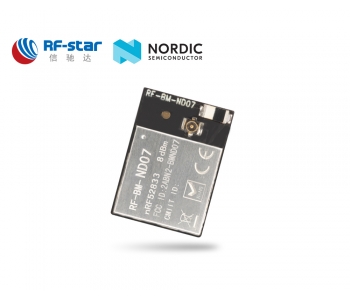

      RF-BM-ND07


      RF-BM-ND07 is an RF module based on Nordic BLE SoC nRF52833QIAA with ARM? Cortex?-M4 32-bit processor. It integrates a 32.768 kHz and a 32 MHz crystal, an LC filter, an antenna matching and a meander line chip antenna. It features low power consumption, small size, robust connection distance, and rigid reliability.




      •
                                            Chip：
                                            nRF52833
        •

      •
                                            Protocols：
                                            BT 5.1
        •

      •
                                            Core：
                                            ARM? Cortex?-M4 32-bit processor with FPU
        •

      •
                                            Key Features：
                                            AoA AoD
        •

      •
                                            TX Power：
                                            +8 dBm
        •

      •
                                            Distance：
                                            500 m (Long Range)
        •





































      Nordic nRF52833 BLE 5.2 module chip antenna long distance AoA AoD module
      RF-BM-ND07 is an RF module based on Nordic BLE SoC nRF52833QIAA with ARM? Cortex?-M4 32-bit processor. It integrates a 32.768 kHz and a 32 MHz crystal, an LC filter, an antenna matching and a meander line chip antenna. It features low power consumption, small size, robust connection distance, and rigid reliability. It supports Bluetooth 5.2 Low Energy, Bluetooth mesh, NFC, Thread and Zigbee. It includes a range of analog and digital interfaces such as NFC-A, ADC, full-speed 12 Mbps USB 2.0, High-speed 32 MHz SPI, UART / SPI / TWI, PWM, I2S and PDM, which make this module an ideal device for a wide range of commercial and industrial applications, including professional lighting, asset tracking, advanced wearables or smart home applications where robust coverage is important.
      Parameters of RF-BM-ND07
      Chipset
      nRF52833QIAA
      Supply Power Voltage
      1.7 V ~ 5.5 V, recommended to 3.3 V
      Frequency
      2402 MHz ~ 2480 MHz
      Transmit Power
      -20.0 dBm ~ +8.0 dBm (Typical: 0 dBm)
      Receiving Sensitivity
      -103 dBm @ 125 kbps BLE
      -96 dBm @ 1 Mbps BLE
      GPIO
      42
      Crystal
      32 MHz
      RAM
      128 KB
      Flash
      512 KB
      Package
      SMT Packaging
      Frequency Error
      ±20 kHz
      Dimension
      12.2 mm x 17.0 mm x (2.2 ± 0.1) mm
      Type of Antenna
      Chip antenna
      Operating Temperature
      -40 ℃～ +85 ℃
      Storage Temperature
      -40 ℃～ +125 ℃
      nRF52833 Nordic BLE 5.2 Thread ZigBee module chip antenna long distance module nRF52833 with all pins




      nRF52833 Nordic BLE 5.2 Thread ZigBee module chip antenna long distance module nRF52833 with all pins
      BLE Application
      nRF52833 Nordic BLE 5.2 Thread ZigBee module chip antenna long distance module nRF52833 with all pins

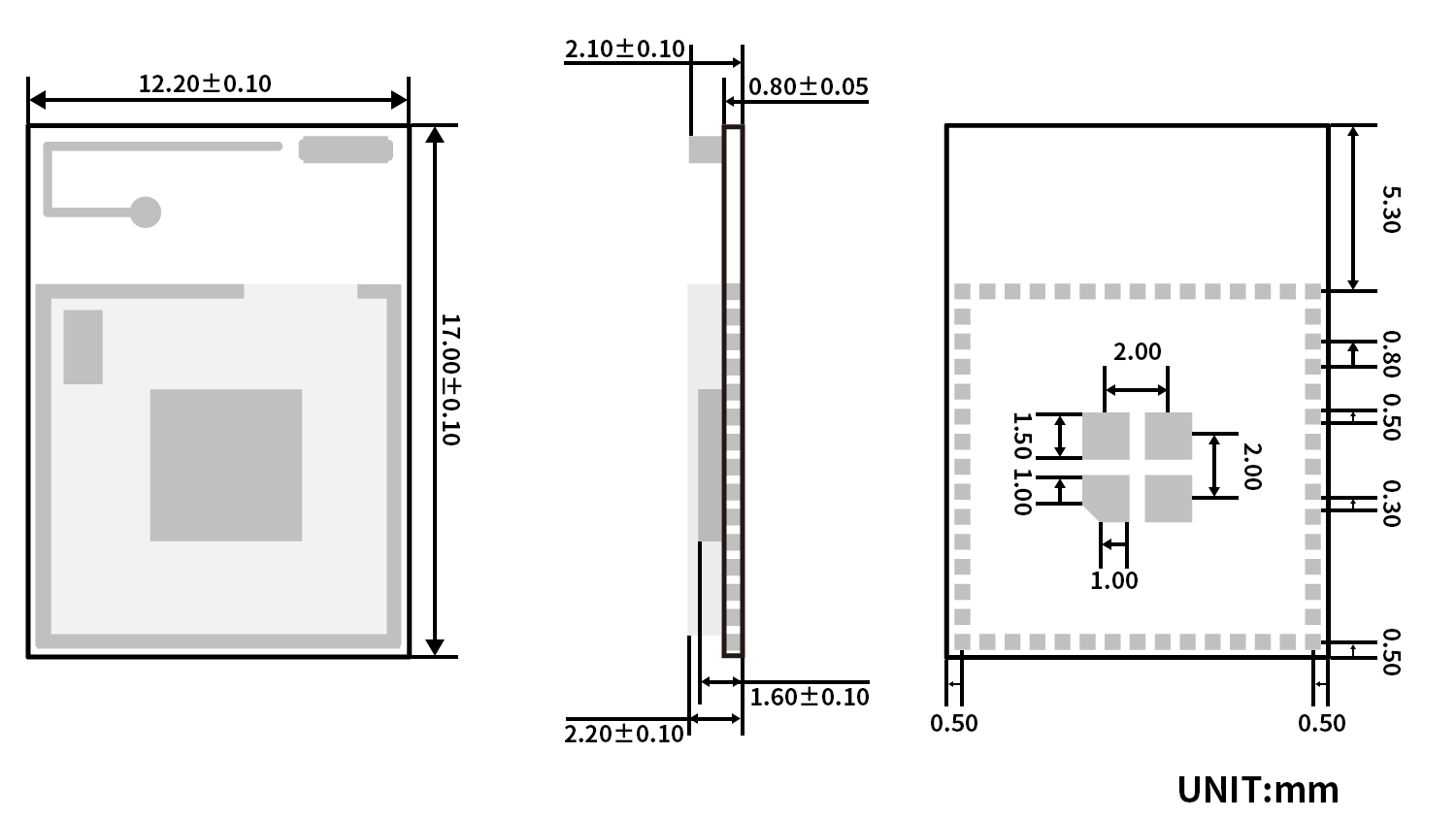

      Recommended Footprint

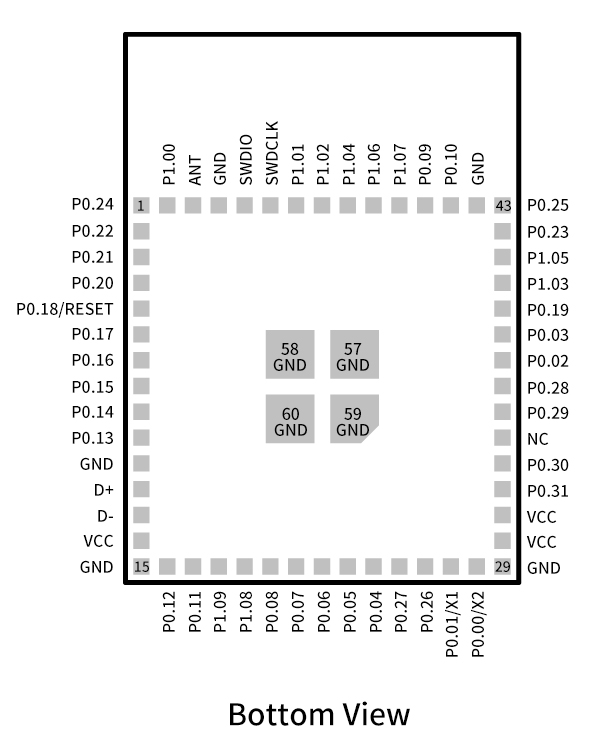

      Pin Attributes
      Pin Functions of RF-BM-ND07

      Pin
      Name
      Pin Type
      Description
      1
      P0.24
      Digital I/O
      General purpose I/O
      2
      P0.22
      Digital I/O
      General purpose I/O
      3
      P0.21
      Digital I/O
      General purpose I/O
      4
      P0.20
      Digital I/O
      General purpose I/O
      5
      P0.18
      Digital I/O
      General purpose I/O

      nRESET

      Configurable as pin RESET
      6
      P0.17
      Digital I/O
      General purpose I/O
      7
      P0.16
      Digital I/O
      General purpose I/O
      8
      P0.15
      Digital I/O
      General purpose I/O
      9
      P0.14
      Digital I/O
      General purpose I/O
      10
      P0.13
      Digital I/O
      General purpose I/O
      11
      GND
      Ground

      12
      D+
      USB
      USB D+
      13
      D-
      USB
      USB D-
      14
      VCC
      VCC
      Power supply: 1.7 V ~ 5.5 V , recommended to 3.3 V.
      15
      GND
      Ground

      16
      P0.12
      Digital I/O
      General purpose I/O

      TRACEDATA1
      Trace data
      Trace buffer TRACEDATA[1]
      17
      P0.11
      Digital I/O
      General purpose I/O

      TRACEDATA2
      Trace data
      Trace buffer TRACEDATA[2]
      18
      P1.09
      Digital I/O
      General purpose I/O

      TRACEDATA3
      Trace data
      Trace buffer TRACEDATA[3]
      19
      P1.08
      Digital I/O
      General purpose I/O
      20
      P0.08
      Digital I/O
      General purpose I/O
      21
      P0.07
      Digital I/O
      General purpose I/O

      TRACECLK
      Trace clock
      Trace buffer clock
      22
      P0.06
      Digital I/O
      General purpose I/O
      23
      P0.05
      Digital I/O
      General purpose I/O

      AIN3
      Analog input
      Analog input
      24
      P0.04
      Digital I/O
      General purpose I/O

      AIN2
      Analog input
      Analog input
      25
      P0.27
      Digital I/O
      General purpose I/O
      26
      P0.26
      Digital I/O
      General purpose I/O
      27
      P0.01
      Digital I/O
      General purpose I/O

      XL2
      Analog input
      Connection for 32.768 kHz crystal
      28
      P0.00
      Digital I/O
      General purpose I/O

      XL1
      Analog input
      Connection for 32.768 kHz crystal
      29
      GND
      Ground

      30
      VCC
      VCC

      31
      VCC
      VCC

      32
      P0.31
      Digital I/O
      General purpose I/O

      AIN7
      Analog input
      Analog input
      33
      P0.30
      Digital I/O
      General purpose I/O

      AIN6
      Analog input
      Analog input
      34
      NC
      －

      35
      P0.29
      Digital I/O
      General purpose I/O

      AIN5
      Analog input
      Analog input
      36
      P0.28
      Digital I/O
      General purpose I/O

      AIN4
      Analog input
      Analog input
      37
      P0.02
      Digital I/O
      General purpose I/O

      AIN0
      Analog input
      Analog input
      38
      P0.03
      Digital I/O
      General purpose I/O

      AIN1
      Analog input
      Analog input
      39
      P0.19
      Digital I/O
      General purpose I/O
      40
      P1.03
      Digital I/O
      General purpose I/O
      41
      P1.05
      Digital I/O
      General purpose I/O
      42
      P0.23
      Digital I/O
      General purpose I/O
      43
      P0.25
      Digital I/O
      General purpose I/O
      44
      GND
      Ground

      45
      P0.10
      Digital I/O
      General purpose I/O

      NFC2
      NFC input
      NFC antenna connection
      46
      P0.09
      Digital I/O
      General purpose I/O

      NFC1
      NFC input
      NFC antenna connection
      47
      P1.07
      Digital I/O
      General purpose I/O
      48
      P1.06
      Digital I/O
      General purpose I/O
      49
      P1.04
      Digital I/O
      General purpose I/O
      50
      P1.02
      Digital I/O
      General purpose I/O
      51
      P1.01
      Digital I/O
      General purpose I/O
      52
      SWDCLK
      Debug
      Serial wire debug clock input for debug and programming
      53
      SWDIO
      Debug
      Serial wire debug I/O for debug and programming
      54
      GND
      Ground

      55
      ANT
      RF
      Single-ended radio antenna connection
      56
      P1.00
      Digital I/O
      General purpose I/O

      TRACEDATA0
      Trace data
      Trace buffer TRACEDATA[0]
      57
      GND
      Ground

      58
      GND
      Ground

      59
      GND
      Ground

      60
      GND
      Ground
