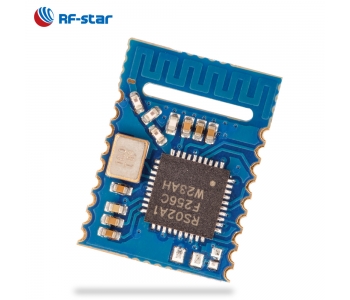

RSBRS02AA

RSBRS02AA is a compact size, cost effective single-mode Bluetooth low energy module based on RF-star 256 KB flash SoC RS02A1-A chip with super low power consumption (BLE TX with LDO: 10.6 mA @ 0 dBm, BLE RX with LDO: 8.8 mA @ 1.0 Mbps), good noise reduction, better sensitivity, robust transmission distance, and high reliability.

Chip： RS02A1-A

Protocols： Bluetooth 5.0

Core： ARM Cortex-M0+ @ 48 MHz

Key Features： SRRC, RoHS

TX Power： +7dBm

Distance： 150m

RSBRS02AA Bluetooth accelerometer Bluetooth UART cheap module BLE 5.0 module

RSBRS02AA is a compact size, cost-effective single-mode Bluetooth low energy module based on RF-star 256 KB flash SoC RS02A1-A chip with super low power consumption (BLE TX with LDO: 10.6 mA @ 0 dBm, BLE RX with LDO: 8.8 mA @ 1.0 Mbps), good noise reduction, better sensitivity, robust transmission distance, and high reliability. The module integrates a 16 MHz crystal, an RF matching filter, a power filter, and a meander line inverted-F PCB antenna. It supports BLE stack v4.2 and is preprogrammed with an easy-to-integrate serial interface communication protocol. RSBRS02AA is pin-to-pin compatible with RSBRS02AI.

Parameters of RSBRS02AA

Chipset	RS02A1-A
Supply Power Voltage	1.8 V ~ 3.6 V, recommended to 3.3 V
Modulation	GFSK
Frequency	2402 MHz ~ 2480.0 MHz
Chanel Number	40 (channel spacing of 2 MHz)
Transmit Power	-20.0 dBm ~ +7.0 dBm
Receiving Sensitivity	-94 dBm
GPIO	13
Crystal	16 MHz
ROM	64 KB
SRAM	32 KB
Flash	256 KB
Package	SMT Packaging
Frequency Error	±20 kHz
Dimension	15.1 mm x 11.2 mm x (1.50 ± 0.1) mm
Type of Antenna	PCB Antenna
Operating Temperature	-40 ℃～ +85 ℃
Storage Temperature	-40 ℃～ +125 ℃
Hibernation Current	5 μA (Test software RS02A1-test.hex)
Current of Broadcast Event	90 μA (Broadcast interval: 200 ms @ 0 dBm)
Current of Connection Event	0.35 mA (Connection interval: 20 ms @ 0 dBm)

RSBRS02AA bluetooth accelerometer bluetooth UART module BLE 4.2 module cheap

BLE Application

RSBRS02AA bluetooth accelerometer bluetooth UART module BLE 4.2 module cheap

Recommended Footprint

Pin Attributes

The Pin Functions of RSBRS02AA

Pin	Name	Chip Pin	Pin Type	Remarks
1	GND	GND	Ground	Ground
2	VCC	VCC	VCC	Power supply: 1.8 V ~ 3.6 V; Recommended to 3.3 V
3	P15	P15	I/O
4	P24	P24	I/O
5	RESET	RSTN	RESTORE	Active low
6	P06	P06	I/O
7	SWC	SWCLK	SWCLK	Connect J-Link simulator SWCLK
8	SWD	SWD	SWDIO	Connect J-Link simulator SWDIO
9	P21	P21	I/O
10	P10	P10	I/O
11	P11	P11	I/O
12	P12	P12	I/O
13	P14	P14	I/O
14	P16/BRTS	P16	I/O
15	P17/BCTS	P17	I/O
16	P27/TX	P27	I/O
17	P28/RX	P28	I/O
18	P03/ADC	P03	I/O
