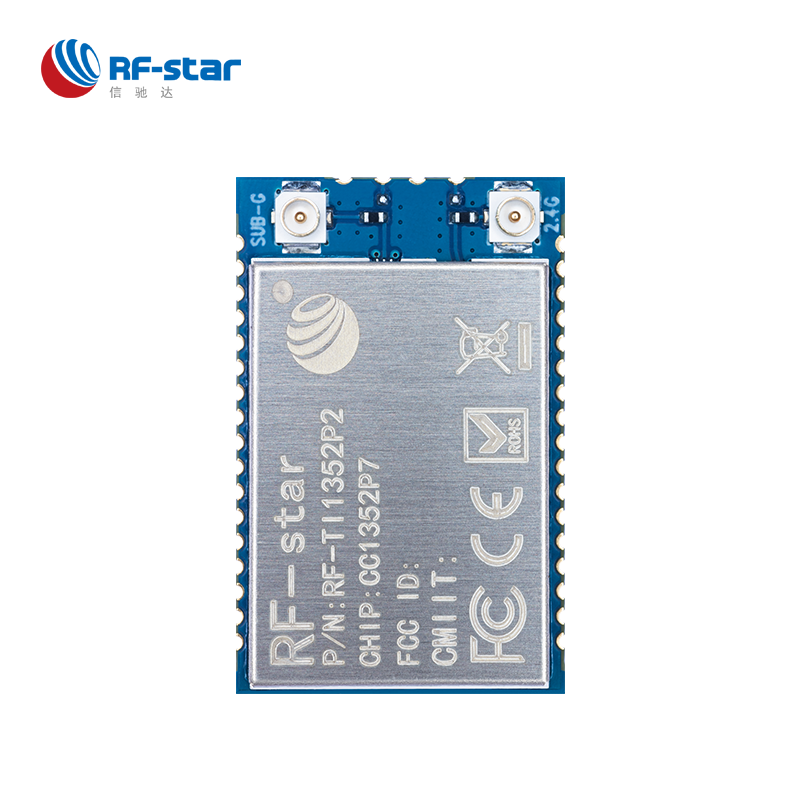

      RF-TI1352P2


      RF-TI1352P2 is RF-star CC1352P7 SimpleLink Sub-1G + 2.4GHz multi-band module with an integrated power amplifier for long-range applications, such as smart meters, wireless environmental sensors, HVAC system controller, gateway, etc.




      •
                                            Chip：
                                            CC1352P7
        •

      •
                                            Protocols：
                                            Thread, Zigbee?, Matter, Bluetooth? 5.3 Low Energy, Sub-1 GHz and 2.4 GHz
        •

      •
                                            Core：
                                            48 MHz ARM? Cortex?-M4F
        •

      •
                                            Key Features：
                                            Power Amplifier, DMM driver, Matter,dual-band radio
        •

      •
                                            TX Power：
                                            +20 dBm
        •

      •
                                            Distance：
                                            1400 m @ Sub-1G (external glue stick antenna)
        •




































      Product Description
      CC1352P7 868MHz 915MHz 2.4GHz Multi-band RF Module RF-TI1352P2 with PA and IPEX Connectors for Grid Meters
      RF-TI1352P2 is an RF module based on TI SoC CC1352P7 with an integrated power amplifier. It integrates a 48 MHz and a 32.768 kHz crystal, a 256 KB ROM, a 704 KB Flash, and the IPEX connectors and half-hole RF output pins of different radio frequencies to guarantee the external antenna connection. Its ARM? Cortex?-M4F core application processor optimized for long-range and low-power. It features small size, robust connection distance, and rigid reliability. The multi-band module supporting multiprotocol for both Sub-1 GHz and 2.4 GHz through a DMM driver for Thread, Zigbee?, Matter, Bluetooth? 5.3 Low Energy, IEEE 802.15.4g, IPv6-enabled smart objects (6LoWPAN), MIOTY?, proprietary systems, including the TI 15.4-Stack (Sub-1 GHz and 2.4 GHz). 1.27-mm pitch stamp stick package for easy assembling and cost-effective PCB design.

      Features of RF-TI1352P2

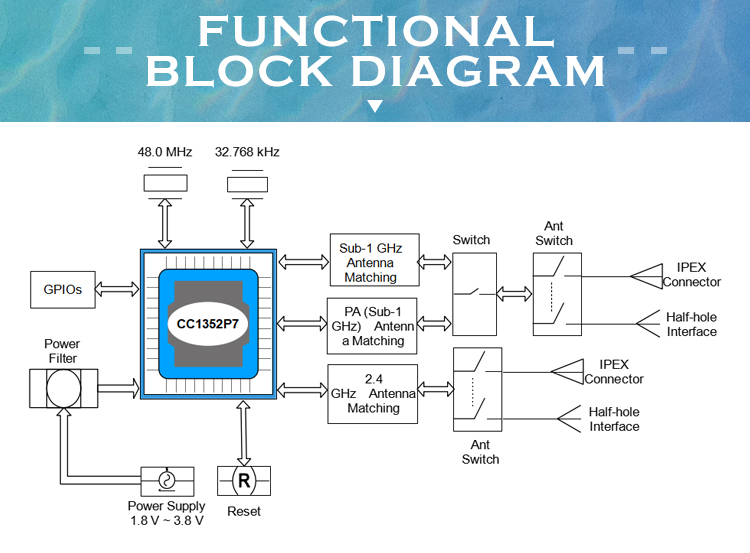

      block diagram of CC1352P7 868MHz 915MHz 2.4GHz rf transmitter and receiver

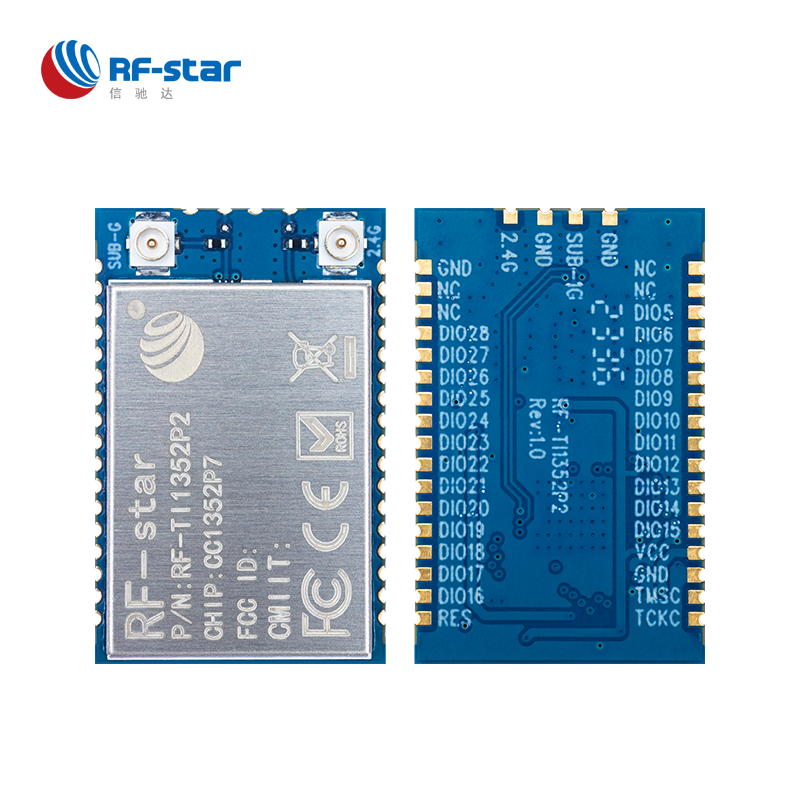

      cc1352p7 rf transmitter and receiver module
      parameter of cc1352p7 rf transmitter and receiver module











      RF-TI1352P2 Hardware Datasheet V1.0_20231122






      What Is TI CC1352P Multi-band Wireless Module?
      CC1352R Multi-Protocol Dual-Band Wireless Solution
      Sub-1GHz vs. 2.4 GHz: 7 Takeaways
