RSBRS02ABR

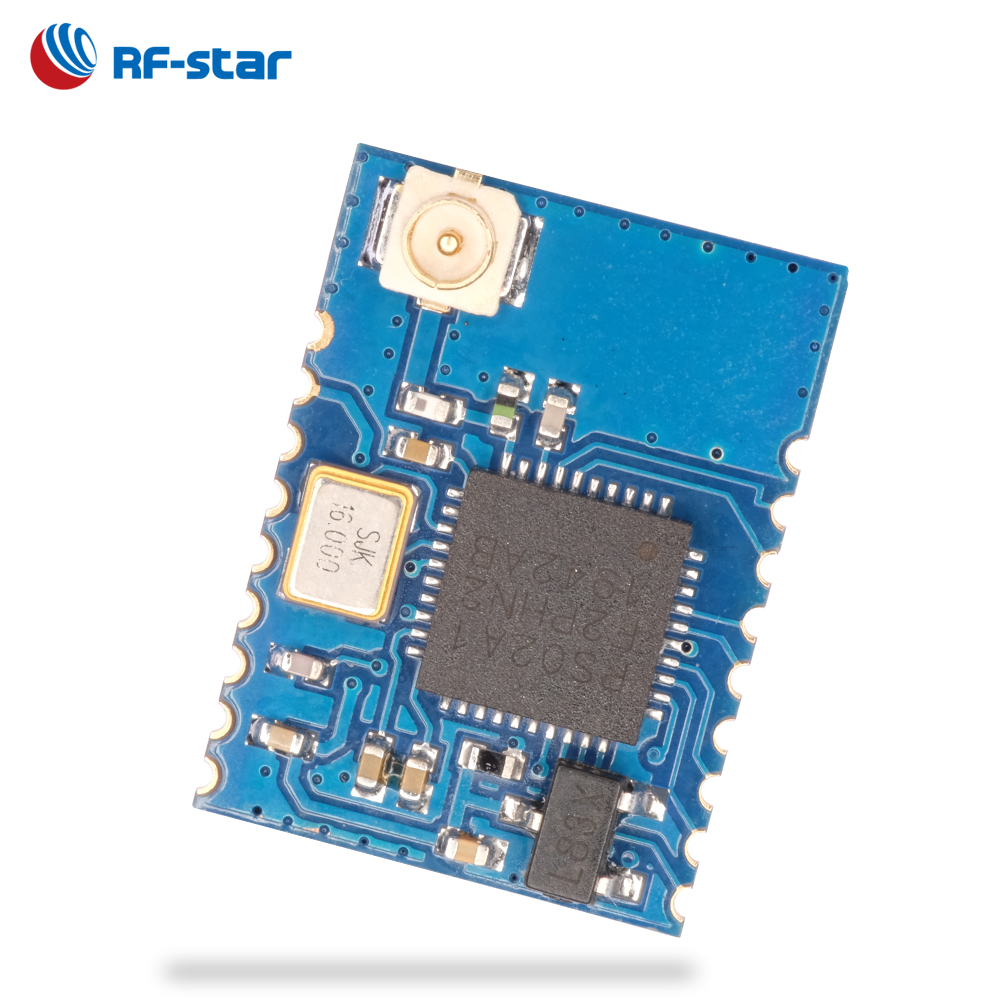

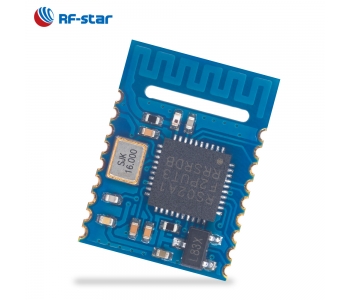

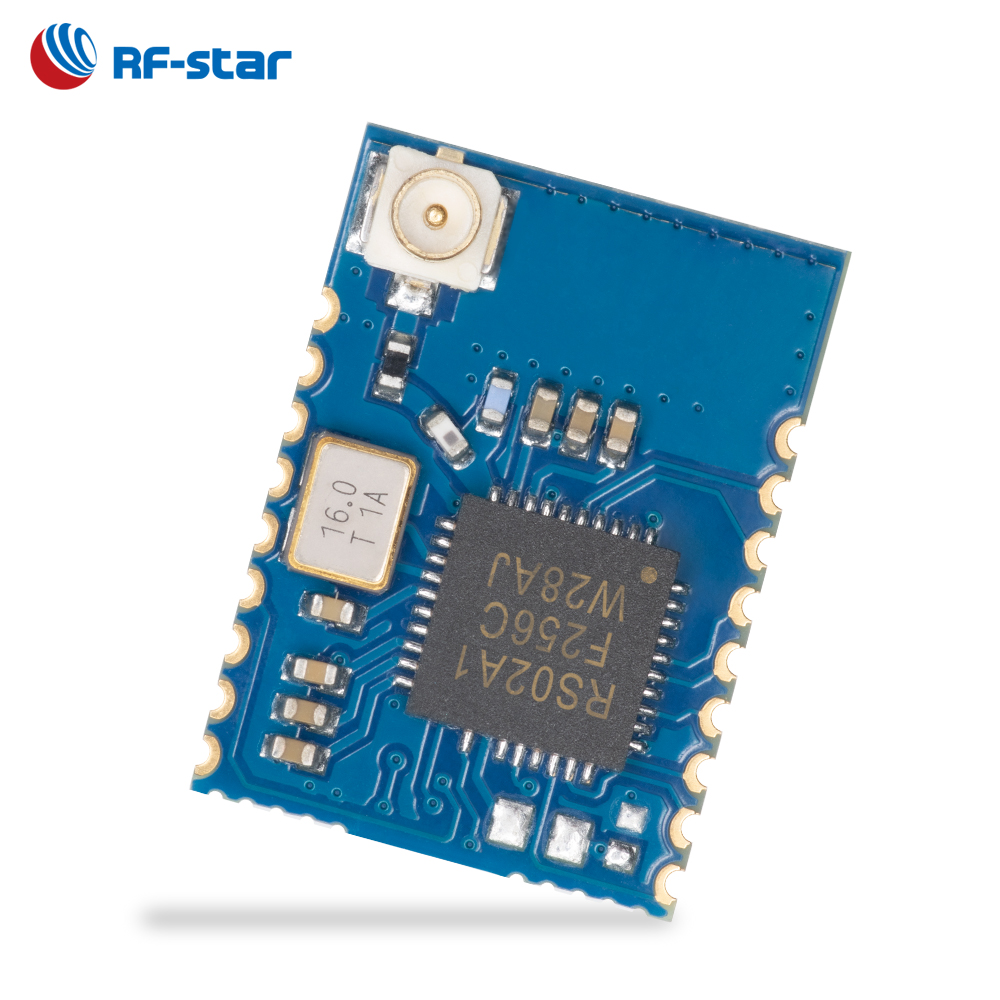

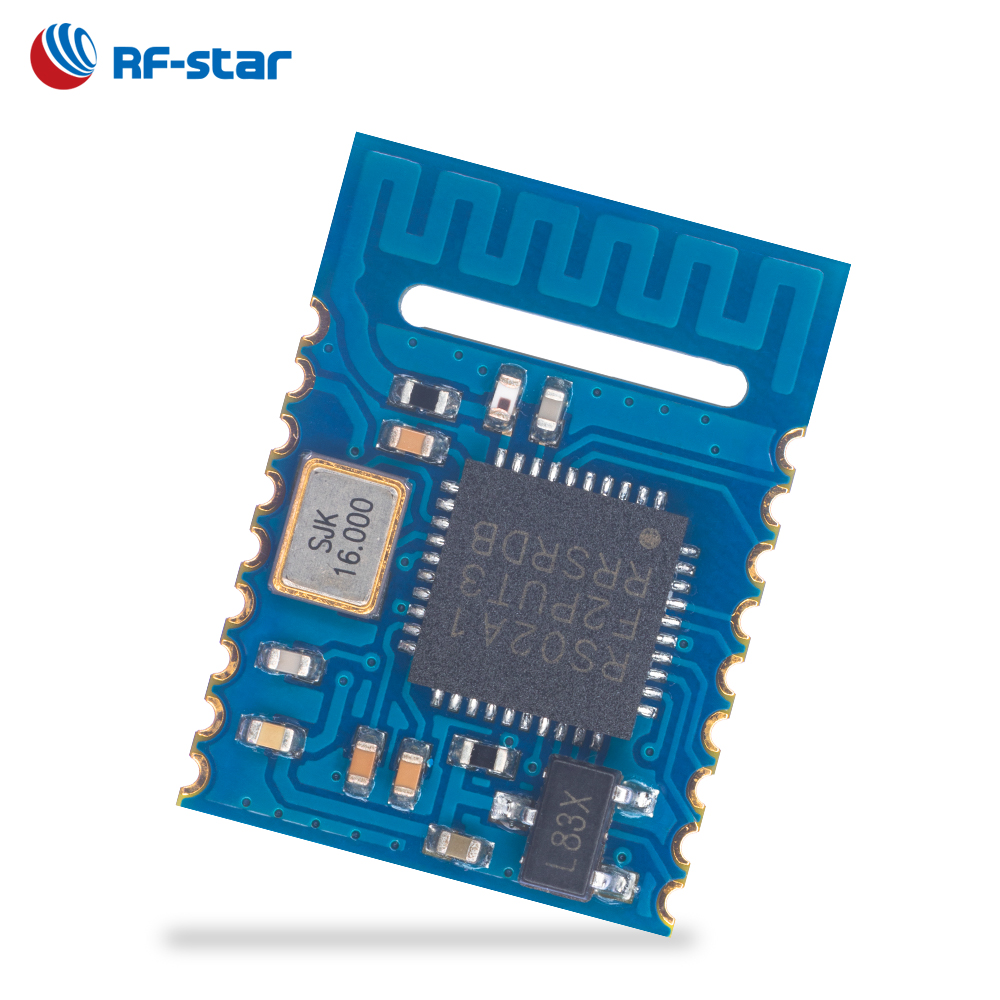

RSBRS02ABR is a compact size, cost effective single-mode BLE 5.0 module based on RF-star 256 KB flash SoC RS02A1-B chip with super low power consumption (BLE TX: 13.0 mA @ 0 dBm, BLE RX: 12.0 mA), good noise reduction, better sensitivity, robust transmission distance, and high reliability.

Chip： RS02A1-B

Protocols： Bluetooth 5.0

Core： 32-bit ARM Cortex-M0+ @ 48 MHz

Key Features： OTA, Custom Service UUID

TX Power： +5dBm

Distance： 150m

Product Description

RF-star small cheap Bluetooth transparent transmission module BLE 5.0 wireless serial module

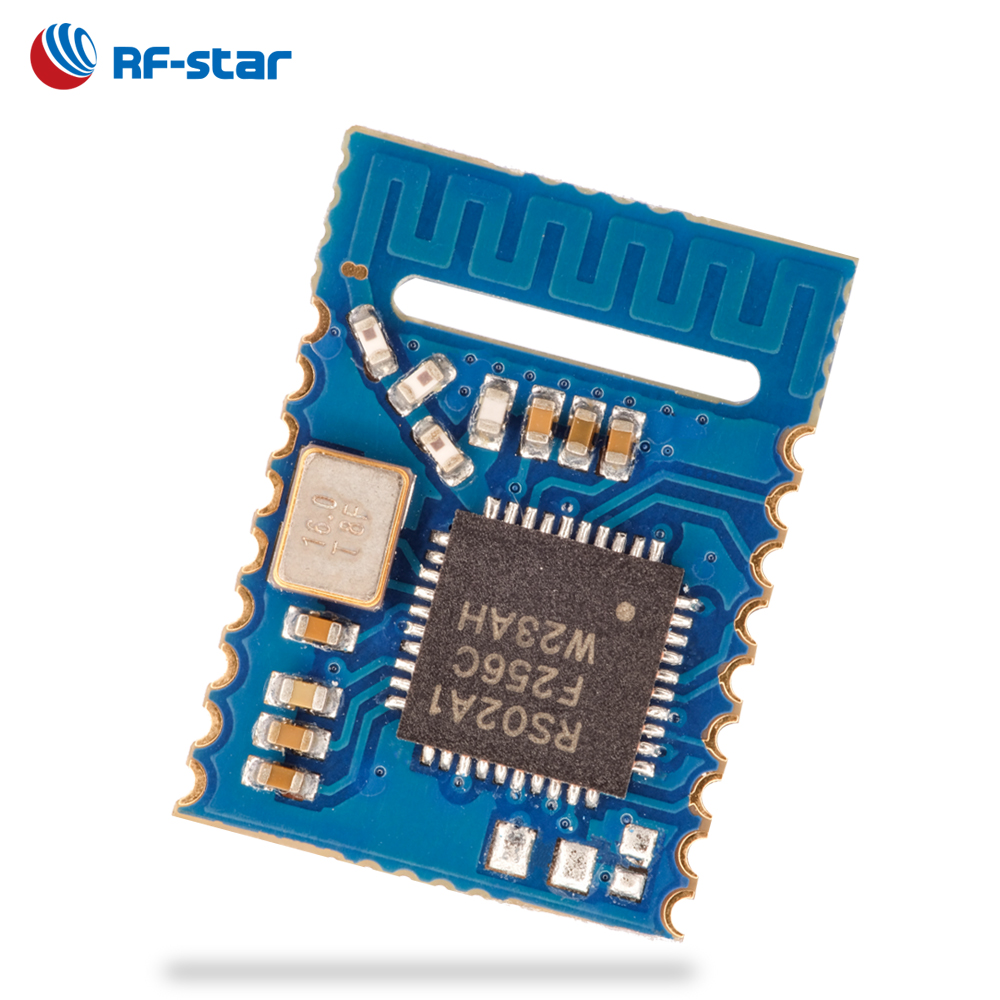

RSBRS02ABR is a compact size, cost-effective single-mode Bluetooth low energy module based on RF-star 256 KB flash SoC RS02A1-B chip with super low power consumption (BLE TX: 13.0 mA @ 0 dBm, BLE RX: 12.0 mA), good noise reduction, better sensitivity, robust transmission distance, and high reliability. The module integrates a 16 MHz crystal, an RF matching filter, a power filter, and a meander line inverted-F PCB antenna. It supports BLE stack v5.0 and is preprogrammed with an easy-to-integrate serial interface communication protocol.

RSBRS02ABR Bluetooth module with direct-drive mode RSBRS02ABR Bluetooth module supports AT commands, romote configuration, romote reset.

Parameters of RSBRS02ABR

Chipset	RS02A1-B
Supply Power Voltage	2.3 V ~ 3.6 V, recommended to 3.3 V
Modulation	GFSK
Frequency	2402 MHz ~ 2480.0 MHz
Transmit Power	-20.0 dBm ~ +5.0 dBm (typical: 0 dBm)
Receiving Sensitivity	-94 dBm
GPIO	11
Crystal	16 MHz
ROM	80 KB
SRAM	36 KB, 4 KB Cache
Flash	256 KB
Package	SMT Packaging
Frequency Error	±20 kHz
Dimension	15.2 mm x 11.2 mm x (1.7 ± 0.1) mm
Type of Antenna	PCB Antenna
Operating Temperature	-40 ℃～ +85 ℃
Storage Temperature	-40 ℃～ +125 ℃
Hibernation Current	5 μA (Test software RS02A1-B-test.hex)
Current of Broadcast Event	90 μA (Broadcast interval: 200 ms @ 0 dBm)
Current of Connection Event	0.35 mA (Connection interval: 20 ms @ 0 dBm)

BLE Application

applications of RSBRS02ABR Bluetooth module

Recommended Footprint

Pin Attributes

Pin Functions of RSBRS02ABR

Pin	Name	Chip Pin	Pin Type	Remarks
1	GND	GND	Ground	Ground
2	VCC	VCC	VCC	Power supply: 2.3 V ~ 3.6 V, Recommended to 3.3 V
3	P02	P02	I/O
4	P03	P03	I/O
5	RESET	RESET	RESET	Reset, active low
6	P04	P04	I/O
7	SWC	SWC	SWCLK	Connect J-Link simulator SWCLK
8	SWD	SWD	SWDIO	Connect J-Link simulator SWDIO
9	NC	NC	NC
10	P05	P05	I/O
11	P08	P08	I/O
12	P10	P10	I/O
13	NC	NC	NC
14	P21	P21	I/O
15	P22	P22	I/O
16	P24	P24	I/O
17	P23	P23	I/O
18	P11	P11	I/O
